Lens support fort short lenses

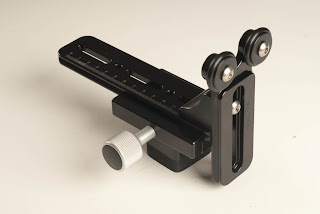

Above picture represent idea how Lens support bracket and 90 degree connector can be combine with any 3/8 rails and create Lens support package. In same cases 90 degree connector has to be mounted under horizontal rail to bring bracket down as much as possible

Wednesday, December 15, 2010

New revision for Mini Clamps

Quick Release Screw-Knob 1.5 inch clamp set. Using provided pins and bushing, clamps can be mounted back to back in different orientation. Pins will prevent clamp from twisting . Set can not be assembled with knob facing the same direction. When disassembled they work as standard clamp

Tuesday, December 7, 2010

Rail with integrated clamp

Multi Purpose Rail with integrates clamp. 6 inch rail with one captive slots and 1/4-20 tap hole.
Works great as Nodal slide

Wednesday, December 1, 2010

8 inch Rail with clamp

This is new 8.00 inch rai with 1.5 inch mini clamp. Something similar to rail with integrated clamp after assembled.
I do provide 2 dowel pins with rail. They prevent clamp from twisting. Clamp itself is 1.5 inch with dual mounting and captive style knob. Hard coat black anodized surface.

Main purpose of this rail is to help you convert standard clamp from different manufactures into rail/clamp combination.
Couple of months ago I had request to make rail with integrated clamp but clamps had to be wider than 1.5 inch since some cameras and L bracket do not work well with 1.5 inch clamps(camera to big, L brackets has a special cut for battery door opening -Nikon D40 for example). Instead incorporate wider jaws I decide to make a rail where you can mount clamp you already own and save some $$$$.
At the same time somebody else was asking for making jaws higher above rail level. He was using short lens and could see end of rail in his lens. Sure I could do that or make rail shorter. Instead making couple of expensive products I decided to make something much less expensive and as universal as possible.
This rail is what we decided to do. If you have clamp from any manufacture you can mount it on rail. If you want clamp go higher just use 1/4 spacer block ($ 14.99 at my e-bay store) and you are there.
I do provide 2 dowel pins with rail. They prevent clamp from twisting . If you own clamp with grove, it will help placing pin(s) in rail hole and align with grove on clamps. My own Hejnar Photo clamps incorporate extra hole for aligning clamp on rail (see picture 14) and preventing it from twisting.
Some clamps you will have to mount without pins. They do not have any opening where anti twisting pins can be located.

This rail can also accept other size of clamps 2.375 and 3.25.
Clamp can be positioned with knob facing back or knob on a side ( right or left). One anti rotating pin will keep clamp from twisting.
