Wednesday, November 8, 2017

Low Profile replacement foot for the Nikon 70-200/ f 2.8E FL ED VR

Low Profile replacement foot for the Nikon 70-200/ f 2.8E FL ED VR Lens (2016 and newer) available in my store  Replacement foot provides an ARCA Swiss compatible dovetail in one integrated piece. Fastens to the lens utilizing the small dovetail on the lens collar with single screw. It is the best quick release system for tripods when combined with Arca style ball head and clamps. This foot is designed to work with various ARCA TYPE quick release clamps including.

Specification:

  • 4.3 inch long.
  • 1.5 inch wide.
  • Weight 2.3 oz (64 grams)
  • 0.7 inch thick.
  • Foot has 0.45 inch clearance to lens barrel.
  • Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
  • Made from 6061-T6 Aluminum.
  • Made in USA.
  • Black hard coat anodized.









Sunday, October 1, 2017

Foot replacement for: Canon 300F2.8 IS 2 500mm F4 IS 2 Lenses Canon EF 200-400 F4L IS lens

Hejnar Photo Quick Release foot replacement for:

Canon 300F2.8 IS 2
Canon 500mm F4 IS 2 Lenses
Canon EF 200-400 F4L IS lens

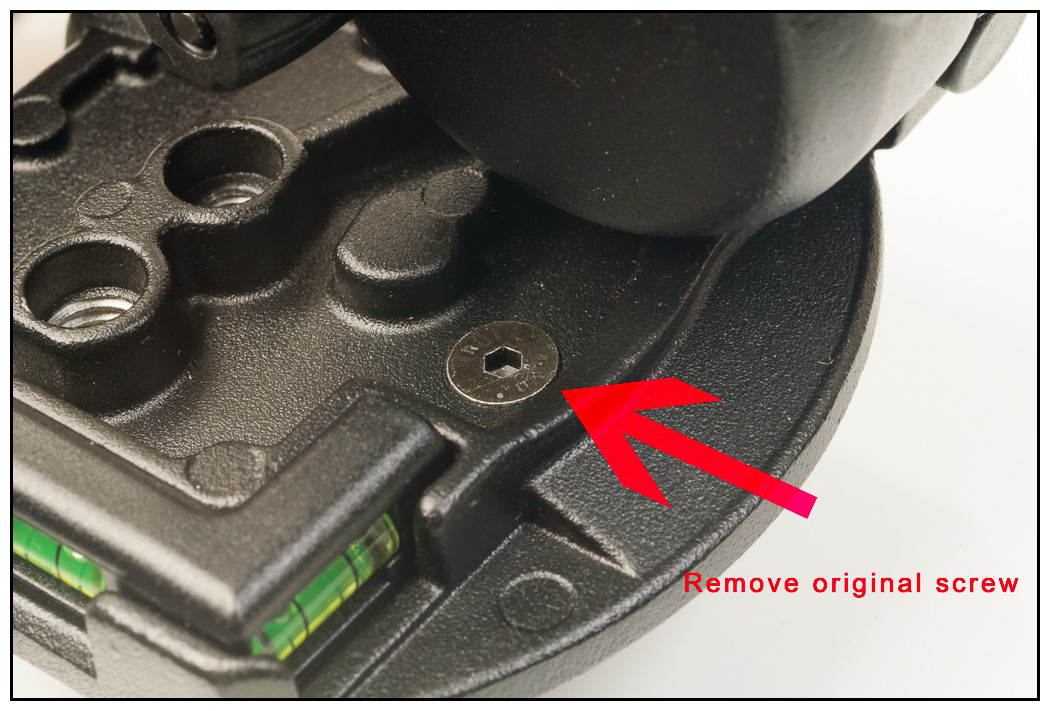

To remove the Canon foot, use the M3 hex key tool that comes with the H127 to completely remove the four Canon mounting screws.
To install the H127, use the four original screws and secure foot to the lens. .
If your mounting screws loosen over time, consider using of LocTite 242 for security.


Specification:


  • Length 6.18 inch.
  • Width 1.64 inch.
  • Weight 6.2oz (176g)
  • 1/4-20 and 3/8-16 taped holes.
  • Double-dovetail design allows for dual clamping surfaces on foot
  • Precision C.N.C. machined from 6061-T6 Aluminium
  • Compatible with Kirk, R.R.S., Arca-Swiss, and many other Arca-Swiss style Quick release clamps.
  • Stainless steel hardware.
  • Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
  • Made in USA
  • Black hard coat anodized surface.




Tuesday, July 25, 2017

Fuji XF 50-140mm f/2.8 R LM OIS WR Lens low profile foot replacement





  • Length 3.725 inch.
  • 1/4-20 and 3/8-16 taped holes.
  • Double-dovetail design allows for dual clamping surfaces on rail
  • Precision C.N.C. machined from 6061-T6 Aluminium
  • Compatible with Kirk, R.R.S., Arca-Swiss, and many other Arca-Swiss style Quick release clamps.
  • Stainless steel hardware.
  • Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
  • Made in USA
  • Black hard coat anodized surface.


Friday, December 2, 2016

Fujifilm XF 100-400mm f/4.5-5.6 R LM OIS WR Lens Foot Replacement

Fujifilm XF 100-400mm f/4.5-5.6 R LM OIS WR Lens Replacement available










  • Length 3.725 inch.
  • Weight 5 oz (143g)
  • 1.2 inch space between lens and a foot
  • 1/4-20 and 3/8-16 taped holes.
  • Double-dovetail design allows for dual clamping surfaces on rail
  • Precision C.N.C. machined from 6061-T6 Aluminium
  • Compatible with Kirk, R.R.S., Arca-Swiss, and many other Arca-Swiss style Quick release clamps.
  • Stainless steel hardware.
  • Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
  • Made in USA
  • Black hard coat anodized surface.
